8X8 HDBaseT HDMI® Matrix—With Scaling

Quick Overview

CS-88MHDBTS

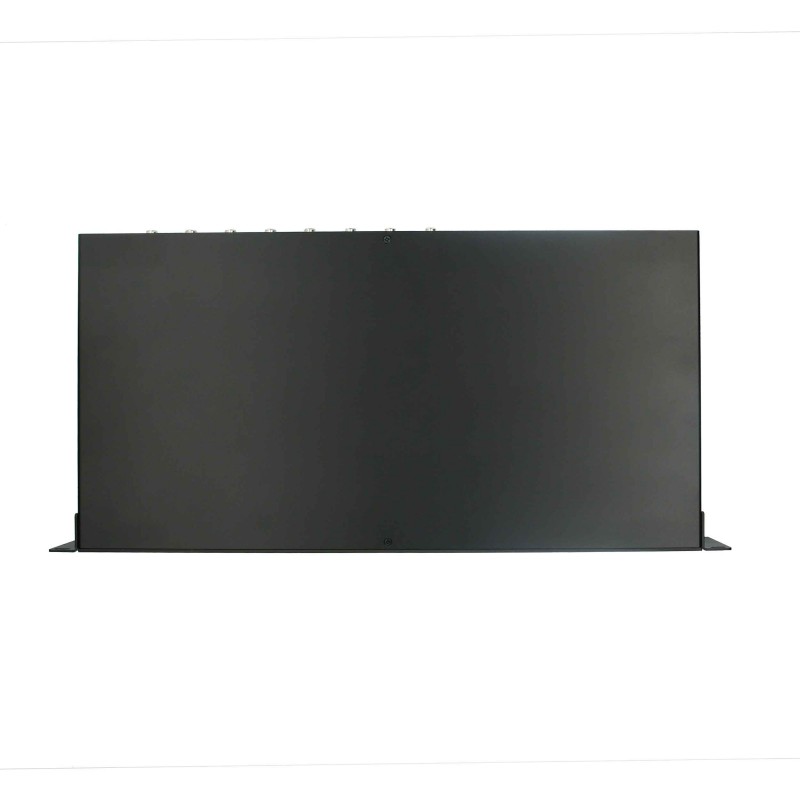

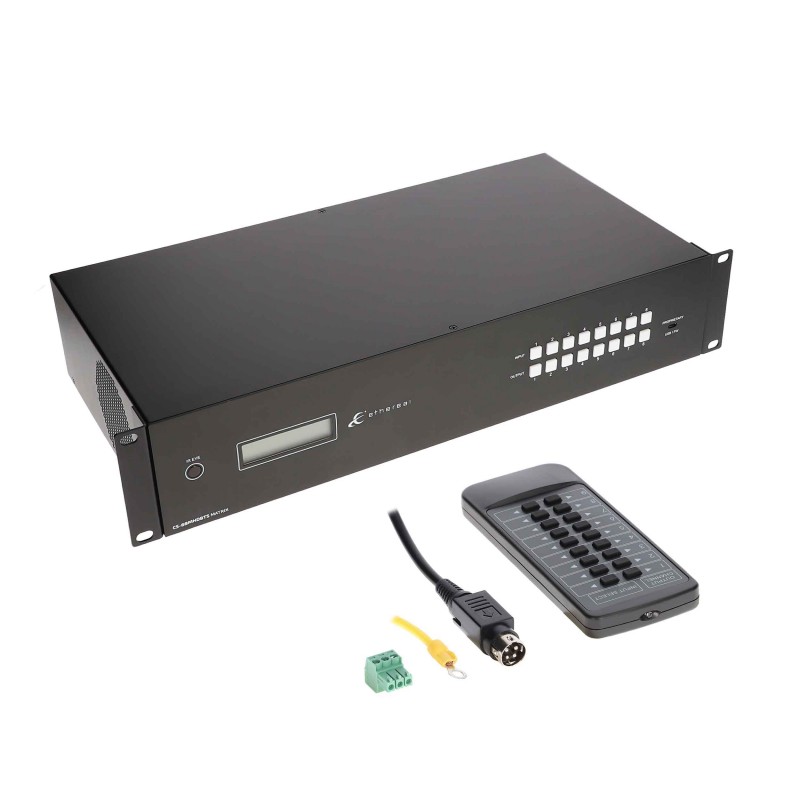

8X8 HDBaseT HDMI® Matrix—With Scaling

Details

Integrators can now provide video distribution without defaulting to the lowest resolution in the system, allowing legacy and new 4K technology to co-exist. The CS- 88MHDBTS 8x8 HDMI® Matrix provides your HDMI® distribution system with the technology required to send up to 8 sources at different resolutions to 8 displays.

This HDMI Matrix is made to solve HDMI issues with a built-in feature that forces a hot plug interrupt via serial or IP commands directly into the matrix itself. The installer can reduce the events of systems failure/lockup as well as provide an “as needed” single button resolution during the programming of customers’ control systems. This matrix can also resolve common HDR incompatibility issues seen in CATV and 4K AVR/TV systems by going to the matrix IP setup page options and turning off the “enhanced (HDR) mode. Please refer to our HDMI Matrix Solution article for more information.

  • HDMI® and HDBaseT (mirrored) outputs
  • 18Gbps uncompressed on HDMI® outputs (also Dolby Vision)
  • 18Gbps with minimal loss compression on HDBaseT outputs
  • 4K/60, HDR @ 70 meters on HDBaseT outputs
  • Supports HDCP, all versions up to and including 2.2
  • Built-in EDID management
  • Digital coax multi-channel and PCM analog audio outputs
  • 8 IR inputs (sending to display)
  • 8 IR outputs (receiving from display)
  • IP, RS232 and IR control
  • Direct front panel control
  • Rack ears included
  • Pre-built drivers for most control systems: Crestron, C4, RTI and more
  • Built-in feature to force a hot plug interrupt via serial or IP commands reduces systems failure/lockup and provides an “as needed” single button resolution
  • Built-in on/off “enhanced (HDR) mode” option through matrix IP setup page settings to solve potential CATV and 4K AVR/TV incompatibility issues




Receiver sold separately: CS-RECHDBT


Files:

Product Manual >>

Product Information Sheet >>

RTI Driver >>

URC Driver >>

Control4 Driver >>

Elan Driver >>

Crestron Driver >>

HEX Codes >>

Savant Driver >>


Videos:

Unboxing the 8X8 HDMI® Matrix and the 8X8 HDBaseT HDMI® Matrix


Additional Information

Case Quantity 2
