4X4 HDMI Matrix—Quick Switching

Quick Overview

CS-44M

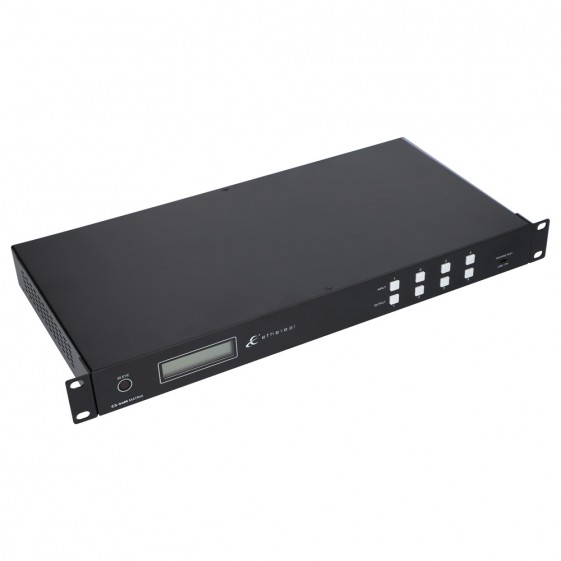

4X4 HDMI Matrix—Quick Switching

Details


The CS-44M 4x4 HDMI® Quick Switching Matrix provides your HDMI® distribution system with the technology required to send up to 4 sources to 4 displays. Supporting 4K/60, HDR, HLG and Dolby Vision as well as digital coax multi-channel output and/or 3.5mm stereo connections. Since your system setup and testing is a vital part of your installation, we also include a built-in signal generator to make your job even simpler. Pre-built drivers for the most commonly used control systems make smart home integration easy.

This HDMI Matrix is made to solve HDMI issues with a built-in feature that forces a hot plug interrupt via serial or IP commands directly into the matrix itself. The installer can reduce the events of systems failure/lockup as well as provide an “as needed” single button resolution during the programming of customers’ control systems. This matrix can also resolve common HDR incompatibility issues seen in CATV and 4K AVR/TV systems by going to the matrix IP setup page options and turning off the “enhanced (HDR) mode. Please refer to our HDMI Matrix Solution article for more information.

  • Quick switching capability reduces user wait
  • 18Gbps uncompressed on HDMI® outputs
  • 4K/60, HDR, HLG and Dolby Vision
  • Supports HDCP, all versions up to and including 2.2
  • Built-in EDID management
  • Digital coax multi-channel and PCM analog audio outputs
  • 4 IR inputs (sending to display)
  • 4 IR outputs (receiving from display)
  • IP, RS232 and IR control
  • Direct front panel control
  • Rack ears included
  • Pre-built drivers for most control systems: Crestron, C4, RTI and more
  • Built-in feature to force a hot plug interrupt via serial or IP commands reduces systems failure/lockup and provides an “as needed” single button resolution
  • Built-in on/off “enhanced (HDR) mode” option through matrix IP setup page settings to solve potential CATV and 4K AVR/TV incompatibility issues

Files:

Product Manual >>

Product Information Sheet >>

RTI Driver >>

URC Driver >>

Control4 Driver >>

Elan Driver >>

Crestron Driver >>

HEX Codes >>

Savant Driver >>




Metra Electronics 12 Year "2-Step" Limited Warranty>>


Videos:

Unboxing the 8X8 HDMI® Matrix and the 8X8 HDBaseT HDMI® Matrix


Additional Information

Case Quantity 5
